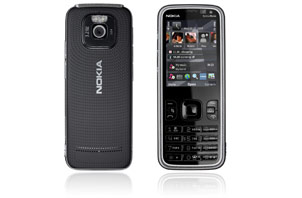

| Nokia 5630 XpressMusic | |
|---|---|
| |
| Announced | 10 February 2009 |
| Phone Type | Brick |
| Operating System | S60 3rd Edition FP2 |
| Communication | GSM Quad-Band, EDGE
WCDMA 900/2100, HSDPA WLAN 802.11 b/g Bluetooth 2.0 +EDR |
The Nokia 5630 XpressMusic is device supporting EGPRS, WCDMA, HSDPA/HSUPA (3.5G) and WLAN. Enjoy videos, music, and graphics on the 2.2” QVGA TFT display. Take photos with a 3.2-megapixel Full Focus camera with a dual LED flash. Additional features include USB charging with simultaneous data transfer, UPnP, Bluetooth 2.0 +EDR, and USB 2.0 High-Speed.
| Technical Specs | |
|---|---|
| Developer Platform | S60 3rd Edition, Feature Pack 2 |
| Operating System | Symbian OS v9.3 |
| Screen Resolution | 240 x 320 pixels |
| General | |
| Screen Resolution | 240 x 320 pixels |
| Screen Color Depth | 24 bits |
| Screen Size | 2.2 inches |
| Display Technology | LCD transflective |
| Device Size | 112 x 46 x 12 mm |
| Volume | 55 cc |
| Weight | 83 g |
| Keypad | Grid Key Mat |
| Other Keys | 3 Labeled Soft Keys
5-way Scrolling Camera Key Media Keys Volume Keys |
| Frequency Bands | GSM 1800
GSM 1900 GSM 850 GSM 900 WCDMA Band I (2100) WCDMA Band VIII (900) |
| Data Bearers | EGPRS
GPRS HSDPA HSUPA WCDMA WLAN IEEE 802.11 b/g |
| Regional Availability | CHINA, Eurasia, Europe, INDIA, Middle East, North Africa, SEAP, Sub-Saharan Africa |
| CPU Count | Single CPU |
| CPU Type | ARM 11 |
| CPU Clock Rate | 600 MHz |
| Consumer Link | Device Home Page |
| Developer Page Link | Developer Home Page |
| Remote Device Access Service | Link to the Service |
| Extra Features | |
| Extra Features | Flight Mode
FOTA Firmware over the Air Nokia Store PictBridge Software Updates Themes VoIP |
| APIs | |
| Java Technology | JSR 139 Connected, Limited Device Configuration (CLDC) 1.1
JSR 118 MIDP 2.1 JSR 248 Mobile Service Architecture Subset for CLDC JSR 75 FileConnection and PIM API 1.0 JSR 82 Java™ APIs for Bluetooth 1.1 JSR 172 J2ME™ Web Services Specification 1.0 (RPC package) JSR 172 J2ME™ Web Services Specification 1.0 (XML Parser package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-CRYPTO package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-PKI package) JSR 179 Location API for J2ME™ 1.0 JSR 180 SIP API for J2ME™ JSR 184 Mobile 3D Graphics API for J2ME™ 1.1 JSR 205 Wireless Messaging API 2.0 JSR 226 Scalable 2D Vector Graphics API for J2ME™ 1.1 JSR 234 Advanced Multimedia Supplements 1.0 (audio3d) JSR 234 Advanced Multimedia Supplements 1.0 (music) IAP Info API 1.0 eSWT UI API 1.0.3 Nokia UI API 1.1 JSR 135 Mobile Media API 1.2 |
| Java API Access Permissions | Java API Access Permissions |
| Other APIs | Open C APIs
OpenGL ES 1.1 Plugin |
| Product ID | 0x2000DA61 |
| Certificates | Symbian A, Symbian B, Symbian C, Symbian D, UTI Root |
| Browser, Flash and Web Technologies | |
| UAProfile Link | Profile 1 |
| Example User Agent Header | Mozilla/5.0 (SymbianOS/9.3; U; Series60/3.2 Nokia5630d-1/012.008; Profile/MIDP-2.1 Configuration/CLDC-1.1 ) AppleWebKit/413 (KHTML, like Gecko) Safari/413 |
| Browser Details | HTML over TCP/IP
OSS Browser WAP 2.0 XHTML over TCP/IP |
| Flash Technology | Flash Lite 3.0 |
| Flash Lite Features | Flash Video |
| Web Runtime | Web Runtime 1.1[1] |
| Notes | 1 Requires firmware update via Nokia Software Updater |
| Multimedia | |
| Multimedia Codecs in Detail | Codec |
| Camera Resolution | 2048 x 1536 pixels |
| CMOS Sensor | 3.2 Megapixels |
| Camera Digital Zoom | 4 x |
| Camera F-Stop/Aperture | f/2.4 |
| Camera Focus range | 50 cm to infinity |
| Camera Image Formats | JPEG/Exif |
| Camera Features | Auto Exposure, Exposure Compensation, Flash[1], Full Focus, Full Screen Viewfinder, Red-Eye Reduction, Self Timer, Still Image Editor |
| Video Recording Resolution | 640 x 480 pixels |
| Video Recording Frame Rate | 15 fps |
| Video Digital Zoom | 4 x |
| Video Recording Formats | H.263, MPEG-4 |
| Video Features | Video Editor
Video Player Video Recorder Video Ringtones Video Sharing Video Streaming |
| Video Playback Formats | 3GPP formats (H.263), Flash Video, H.264/AVC, MPEG-4, RealVideo 10, RealVideo 9 |
| Graphic Formats | BMP, EXIF, GIF87a, GIF89a, JPEG, JPEG 2000, MBM, PNG, TIFF, WBMP, WMF |
| Audio Features | Audio Equalizer
Audio Recording AAC Audio Streaming Bass Boost Internet Radio Music Player Stereo Stereo FM RDS Radio Stereo Widening Visual Radio |
| Audio Formats | AAC, AAC+, AMR-NB, AMR-WB, AU, HE-AAC v2, M4A, MIDI Tones (poly 64), Mobile XMF, MP3, MP4, RealAudio 7, 8, 10, SP-MIDI, True tones, WAV, WMA, WVE |
| Secondary Camera Resolution | 144 x 176 pixels |
| Secondary Camera CMOS Sensor | 300000 pixels |
| Secondary Camera Focal length | 28 mm |
| Secondary Camera F-Stop/Aperture | f/2.8 |
| Secondary Camera Image Formats | JPEG/Exif |
| Secondary Camera Video Recording Resolution | 144 x 176 pixels |
| Secondary Camera Video Recording Frame Rate | 15 fps |
| Secondary Camera Video Zoom | 2 x |
| Secondary Camera Video Recording Format | H.263 |
| Notes | 1 Dual LED flash. |
| Memory Functions | |
| Maximum User Storage | 60 MB |
| ROM Memory | 256 MB |
| RAM Memory | 128 MB |
| Memory Card type | Micro SD |
| Memory Card Features | Hot Swap |
| Maximum Memory Card Size | 16 GB |
| Maximum Heap Size | Unlimited |
| Maximum JAR Size | Unlimited |
| Connectivity | |
| Local Connectivity | Bluetooth 2.0 +EDR
Bluetooth Stereo Audio DLNA Certification Micro USB MTP (Multimedia Transfer Protocol) Nokia AV 3.5mm Nokia microUSB Cable CA-101D UPnP USB 2.0 High-Speed USB Mass Storage |
| Bluetooth Profiles | A2DP, AVRCP 1.0, BIP, DUN, FTP, GAP, GOEP, HFP, HID, HSP, OPP, PBAP 1.0, SAP, SDP, SPP 1.0 |
| WLAN support | 802.11b/g
Nokia VoIP 3.0 WEP WPA WPA2 (AES/TKIP) |
| Messaging | |
| Messaging | IM, MMS+SMIL, SMS |
| Messaging Features | OMA Instant Messaging and Presence Service v1.2.1
OMA Multimedia Messaging Service v1.2 |
| Email Solutions | Mail for Exchange
Nokia Intellisync Wireless Email OMA E-mail Notification v1.0 |
| Supported Email Protocols | IMAP4, POP3, SMTP |
| Supported Document Formats | Excel, PDF, Powerpoint, Word |
| Power Management | |
| Power Management | USB Charging |
| Battery model | BL-4CT 3.7V 860mAh |
| GSM Talk Time up to | 6.7 hours |
| WCDMA Talk Time up to | 4.0 hours |
| GSM Standby Time up to | 350.0 hours |
| WCDMA Standby Time up to | 350.0 hours |
| Video Playback Time up to | 7.0 hours |
| Video Recording Time up to | 3.8 hours |
| Music Playback Time up to | 24.0 hours |
| Other | |
| OMA Device Management | OMA Client Provisioning v1.1
OMA Device Management v1.1.2 |
| Synchronization | OMA Data Synchronization v1.2
SyncML |
| Digital Rights Management | OMA DRM Forward Lock
OMA DRM v1.0 OMA DRM v2.0 Windows Media DRM 10 |
| DRM Delivery Method | HTTP Download
MMS OMA Download v1.0 |
| Web Services | Liberty Alliance ID-WSF 1.1
OMA WS Network Identity 1.0 WS-I Basic Profile 1.0/1.1 |
