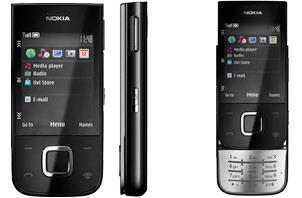

| Nokia 5330 Mobile TV Edition | |
|---|---|
| |
| Announced | 16 November 2009 |
| Phone Type | Slide |
| Operating System | S40 6th Edition |
| Communication | GSM Quad-Band, EDGE
WCDMA 850/1900/2100, UMTS Bluetooth 2.1 +EDR |
The Nokia 5330 Mobile TV Edition is a phone supporting EGSM and WCDMA. Main features include Series 40 6th Edition developer platform, DVB-H, 3.2 Megapixel camera with flash, WebKit Open Source Browser, FM RDS Radio, Flash Lite 3.0, Bluetooth 2.1 +EDR and MIDP Java 2.1 with additional Java APIs.
| Technical Specs | |
|---|---|
| Developer Platform | Series 40 6th Edition (initial release) |
| Operating System | Nokia OS |
| Screen Resolution | 240 x 320 pixels |
| General | |
| Development Frameworks | Java
Flash Series 40 Web Apps |
| Screen Resolution | 240 x 320 pixels |
| Screen Color Depth | 24 bits |
| Screen Size | 2.4 inches |
| Display Technology | LCD transflective |
| Device Size | 101.2 x 48.5 x 14.25 mm |
| Volume | 66.1 cc |
| Weight | 114 g |
| Keypad | Grid Key Mat |
| Other Keys | 2 Labeled Soft Keys
5-way Scrolling Media Keys Volume Keys |
| Frequency Bands | GSM 1800
GSM 1900 GSM 850 GSM 900 WCDMA Band I (2100) WCDMA Band II (1900) WCDMA Band V (850) |
| Data Bearers | EGPRS
GPRS WCDMA |
| Regional Availability | Eurasia, Europe, Middle East, SEAP, TAIWAN |
| Consumer Link | Device Home Page |
| Developer Page Link | Developer Home Page |
| Extra Features | |
| Extra Features | DVB-H 1.0
Flight Mode FOTA Firmware over the Air Nokia Store Ovi Contacts Ovi Maps Ovi Share SyncML Themes |
| APIs | |
| Java Technology | JSR 139 Connected, Limited Device Configuration (CLDC) 1.1
JSR 118 MIDP 2.1 JSR 248 Mobile Service Architecture Subset for CLDC JSR 75 FileConnection and PIM API 1.0 JSR 82 Java™ APIs for Bluetooth 1.1 JSR 135 Mobile Media API 1.1 JSR 172 J2ME™ Web Services Specification 1.0 (RPC package) JSR 172 J2ME™ Web Services Specification 1.0 (XML Parser package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-APDU package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-CRYPTO package) JSR 179 Location API for J2ME™ 1.0 JSR 184 Mobile 3D Graphics API for J2ME™ 1.1 JSR 205 Wireless Messaging API 2.0 JSR 211 Content Handler API 1.0 JSR 226 Scalable 2D Vector Graphics API JSR 234 Advanced Multimedia Supplements 1.1 (audio3d) JSR 234 Advanced Multimedia Supplements 1.1 (camera)[1] JSR 234 Advanced Multimedia Supplements 1.1 (music) Nokia UI API 1.1 |
| Recommended Java SDK | Nokia SDK 1.0 for Java |
| Java API Access Permissions | Java API Access Permissions |
| Certificates | UTI Root |
| Notes | 1 contains CameraControl, SnapshotControl, FlashControl, FocusControl and ZoomControl |
| Browser, Flash and Web Technologies | |
| UAProfile Link | Profile |
| Browser Details | HTML over TCP/IP
WAP 2.0 WebKit Open Source Browser XHTML over TCP/IP |
| Flash Technology | Flash Lite 3.0 |
| Flash Lite Features | Screensaver
Wall Paper |
| Multimedia | |
| Camera Resolution | 1536 x 2048 pixels |
| CMOS Sensor | 3.2 Megapixels |
| Camera Digital Zoom | 4 x |
| Camera Image Formats | JPEG |
| Camera Features | Flash, Full Screen Viewfinder, Self Timer, Still Image Editor |
| Video Recording Resolution | 144 x 176 pixels |
| Video Recording Frame Rate | 15 fps |
| Video Digital Zoom | 5 x |
| Video Recording Formats | H.263, MPEG-4 |
| Video Features | Video Player
Video Recorder Video Ringtones Video Streaming |
| Video Playback Formats | 3GPP formats (H.263), H.264/AVC, MPEG-4, WMV 9 |
| Graphic Formats | BMP, GIF87a, GIF89a, JPEG, PNG, SVG-T, WBMP |
| Theme Version | Series 40 Theme v3.0 |
| Suggested Theme Template | Series 40 Simple UI
Series 40 White Text |
| Audio Features | Audio Equalizer
Audio Recorder AMR Audio Streaming Bluetooth Stereo Handsfree Speaker MP3 Ringtones Music Player Stereo FM Radio Stereo Widening |
| Audio Formats | AAC, AAC+, AMR-NB, AMR-WB, HE-AAC v2, M4A, MIDI Tones (poly 64), Mobile XMF, MP3, MP4, SP-MIDI, True tones, WAV, WMA 10, WMA 10 Pro, WMA 9 |
| Memory Functions | |
| Maximum User Storage | 70 MB |
| ROM Memory | 128 MB |
| RAM Memory | 64 MB |
| Memory Card type | Micro SD |
| Memory Card Features | Hot Swap |
| Maximum Memory Card Size | 16 GB |
| Maximum Heap Size | 2 MB |
| Maximum JAR Size | 1 MB |
| Connectivity | |
| Local Connectivity | Bluetooth 2.1 +EDR
Bluetooth Stereo Audio Micro USB MTP (Multimedia Transfer Protocol) Nokia AV 3.5mm Nokia microUSB Cable CA-101D USB 2.0 High-Speed |
| Bluetooth Profiles | A2DP, AVCTP 1.0, DUN, FTP, GAP, GAVDP, GOEP, HFP, HSP, OPP, PAN, PBAP 1.0, SAP, SPP 1.0 |
| Messaging | |
| Messaging | IM, MMS+SMIL, SMS |
| Messaging Features | OMA Multimedia Messaging Service v1.3 |
| Email Solutions | Native Email Client |
| Supported Email Protocols | IMAP4, POP3, SMTP |
| Power Management | |
| Power Management | 2.0mm Charger Connector |
| Battery model | BL-4U 3.7V 1000mAh |
| GSM Talk Time up to | 5.3 hours |
| WCDMA Talk Time up to | 4.0 hours |
| GSM Standby Time up to | 400.0 hours |
| WCDMA Standby Time up to | 387.0 hours |
| Music Playback Time up to | 30.5 hours |
| Other | |
| OMA Device Management | OMA Client Provisioning v1.1
OMA Device Management v1.2 |
| Synchronization | OMA Data Synchronization v1.1.2
SyncML |
| Digital Rights Management | OMA DRM Forward Lock
OMA DRM v1.0 OMA DRM v2.0 Windows Media DRM |
| DRM Delivery Method | HTTP Download
MMS OMA Download v1.0 |
