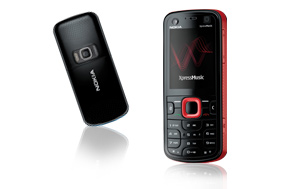

| Nokia 5320 XpressMusic | |
|---|---|
| |
| Announced | 22 April 2008 |
| Phone Type | Brick |
| Operating System | S60 3rd Edition FP2 |
| Communication | GSM Quad-Band, EDGE
WCDMA 900/2100, HSDPA Bluetooth 2.0 +EDR |
The Nokia 5320 XpressMusic is a dual mode portable multimedia computer supporting EGSM 850/900/1800/1900 and WCDMA/HSDPA 900/2100. The Nokia 5320 XpressMusic supports video calls, photos, and videos with two built-in cameras. Enjoy superior audio quality with dedicated audio chip, and fast and easy music downloads with HSDPA and USB 2.0 High Speed. Additional Nokia 5320 XpressMusic features include Bluetooth 2.0 EDR with A2DP, and up to 16 GB MicroSD memory card support.
| Technical Specs | |
|---|---|
| Developer Platform | S60 3rd Edition, Feature Pack 2 |
| Operating System | Symbian OS v9.3 |
| Screen Resolution | 240 x 320 pixels |
| General | |
| Development Frameworks | Web Runtime
Java Symbian C++ Flash Open C/C++ |
| Screen Resolution | 240 x 320 pixels |
| Screen Color Depth | 24 bits |
| Screen Size | 2 inches |
| Display Technology | LCD transflective |
| Device Size | 108 x 46 x 15 mm |
| Volume | 67 cc |
| Weight | 90 g |
| Keypad | Grid Key Mat |
| Other Keys | 2 Labeled Soft Keys
4-way Scrolling 8-way Scrolling in Game |
| Frequency Bands | GSM 1800
GSM 1900 GSM 850 GSM 900 WCDMA Band I (2100) WCDMA Band VIII (900) |
| Data Bearers | CSD
Dual Transfer Mode (MSC 11) EGPRS GPRS HSCSD HSDPA WCDMA |
| Regional Availability | Asia-Pacific, Europe, Latin America, Middle East |
| CPU Count | Single CPU |
| CPU Type | ARM 11 |
| CPU Clock Rate | 369 MHz |
| Developer Page Link | Developer Home Page |
| Remote Device Access Service | Link to the Service |
| Extra Features | |
| Extra Features | FOTA Firmware over the Air
Nokia Store OMA Browsing v2.1 OMA Domain Name System (DNS) 1.0 On-Demand Paging PoC (Push-to-talk over Cellular) Themes |
| APIs | |
| Java Technology | JSR 139 Connected, Limited Device Configuration (CLDC) 1.1
JSR 118 MIDP 2.1 JSR 185 Java™ Technology for Wireless Industry JSR 248 Mobile Service Architecture Subset for CLDC JSR 75 FileConnection and PIM API 1.0 JSR 82 Java™ APIs for Bluetooth 1.1 JSR 172 J2ME™ Web Services Specification 1.0 (RPC package) JSR 172 J2ME™ Web Services Specification 1.0 (XML Parser package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-CRYPTO package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-PKI package) JSR 179 Location API for J2ME™ 1.0 JSR 180 SIP API for J2ME™ JSR 184 Mobile 3D Graphics API for J2ME™ 1.1 JSR 205 Wireless Messaging API 2.0 JSR 226 Scalable 2D Vector Graphics API for J2ME™ 1.1 JSR 234 Advanced Multimedia Supplements 1.0 (audio3d) JSR 234 Advanced Multimedia Supplements 1.0 (music) IAP Info API 1.0 eSWT UI API 1.0.3 Nokia UI API 1.1 JSR 135 Mobile Media API 1.2 |
| Java API Access Permissions | Java API Access Permissions |
| Other APIs | Open C APIs |
| Product ID | 0x2000DA5A |
| Certificates | Symbian A, Symbian B, Symbian C, Symbian D, UTI Root |
| Browser, Flash and Web Technologies | |
| UAProfile Link | Profile 1 |
| Example User Agent Header | Mozilla/5.0 (SymbianOS/9.3; U; Series60/3.2 Nokia5320d-1/05.16; Profile/MIDP-2.1 Configuration/CLDC-1.1 ) AppleWebKit/413 (KHTML, like Gecko) Safari/413 |
| Browser Details | HTML over TCP/IP
OSS Browser WAP 2.0 XHTML over TCP/IP |
| Flash Technology | Flash Lite 3.0 |
| Web Runtime | Web Runtime 1.0 |
| Multimedia | |
| Multimedia Codecs in Detail | Codec |
| Camera Resolution | 1600 x 1200 pixels |
| CMOS Sensor | 2.0 Megapixels |
| Camera Digital Zoom | 4 x |
| Camera F-Stop/Aperture | f/2.8 |
| Camera Focus range | 10 cm to infinity |
| Camera Image Formats | JPEG/Exif |
| Camera Features | Flash, Self Timer, Still Image Editor |
| Video Recording Resolution | 320 x 240 pixels |
| Video Recording Frame Rate | 15 fps |
| Video Digital Zoom | 4 x |
| Video Recording Formats | MPEG-4 |
| Video Features | Video Call
Video Editor Video Player Video Recorder Video Sharing Video Streaming |
| Video Playback Formats | 3GPP formats (H.263), Flash Video, H.264/AVC, MPEG-4, RealVideo 7,8,9/10 |
| Graphic Formats | BMP, EXIF, GIF87a, GIF89a, JPEG, JPEG 2000, PNG, WBMP |
| Audio Features | Audio Equalizer
Audio Recorder AMR Audio Streaming Handsfree Speaker MP3 Ringtones Music Player Stereo FM RDS Radio Visual Radio |
| Audio Formats | AAC, AAC+, AMR-NB, AMR-WB, HE-AAC v2, M4A, MIDI Tones (poly 64), Mobile XMF, MP3, MP4, RealAudio 7, 8, 10, SP-MIDI, True tones, WAV, WMA |
| Secondary Camera Resolution | 384 x 320 pixels |
| Secondary Camera Digital Zoom | 2 x |
| Secondary Camera Focal length | 51 mm |
| Secondary Camera F-Stop/Aperture | f/2.8 |
| Secondary Camera Image Formats | JPEG/Exif |
| Secondary Camera Video Recording Resolution | 176 x 144 pixels |
| Secondary Camera Video Recording Frame Rate | 15 fps |
| Secondary Camera Video Zoom | 2 x |
| Secondary Camera Video Recording Format | H.263 |
| Memory Functions | |
| Maximum User Storage | 140 MB |
| Free Executable RAM Memory | 85 MB |
| ROM Memory | 256 MB |
| RAM Memory | 128 MB |
| Memory Card type | Micro SD |
| Memory Card Features | Hot Swap |
| Maximum Memory Card Size | 16 GB |
| Maximum Heap Size | Unlimited |
| Maximum JAR Size | Unlimited |
| Connectivity | |
| Local Connectivity | Bluetooth 2.0 +EDR
Micro USB Nokia microUSB Cable CA-101 USB 2.0 High-Speed USB Mass Storage |
| Bluetooth Profiles | A2DP, AVRCP 1.0, BIP, BPP, DUN, FTP, GAVDP, GOEP, HFP, HID, HSP, OPP, PBAP 1.0, SAP, SDP |
| Messaging | |
| Messaging | MMS, MMS+SMIL, SMS |
| Messaging Features | OMA Instant Messaging and Presence Service v1.1
OMA Multimedia Messaging Service v1.2 |
| Supported Email Protocols | IMAP4, POP3, SMTP |
| Supported Document Formats | Excel, PDF, Powerpoint, Word, Zip |
| Power Management | |
| Power Management | 2.0mm Charger Connector |
| Battery model | BL-5B 3.7V 890mAh |
| GSM Talk Time up to | 3.5 hours |
| WCDMA Talk Time up to | 2.5 hours |
| GSM Standby Time up to | 250.0 hours |
| WCDMA Standby Time up to | 250.0 hours |
| Music Playback Time up to | 24.0 hours |
| Other | |
| OMA Device Management | OMA Client Provisioning v1.1
OMA Device Management v1.1.2 |
| Synchronization | OMA Data Synchronization v1.2
SyncML |
| Digital Rights Management | OMA DRM Forward Lock
OMA DRM v1.0 OMA DRM v2.0 |
| DRM Delivery Method | HTTP Download
MMS OMA Download |
