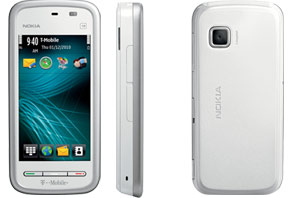

| Nokia 5230 Nuron | |
|---|---|
| |
| Announced | 3 March 2010 |
| Phone Type | Touch |
| Operating System | S60 5th Edition |
| Communication | GSM Quad-Band, EDGE
WCDMA 850/1700/2100, HSDPA Bluetooth 2.0 +EDR |
The Nokia 5230 Nuron is a S60 5th Edition device supporting quadband GSM (850/900/1800/1900), dual-band WCDMA (850, 1700/2100) and HSDPA. The device has a 3.2“, bright nHD (640 x 360 pixels and 16:9 aspect ratio) resistive touch screen with tactile feedback. Input methods include full screen QWERTY, alphanumeric keypad and handwrite recognition. Other features include a 2 megapixel camera, Bluetooth 2.0 +EDR, flash Lite 3.0 and MIDP Java 2.1 APIs.
| Technical Specs | |
|---|---|
| Developer Platform | S60 5th Edition |
| Operating System | Symbian OS v9.4 |
| Screen Resolution | 360 x 640 pixels |
| General | |
| Development Frameworks | Web Runtime
Java Symbian C++ Flash Open C/C++ |
| Screen Resolution | 360 x 640 pixels |
| Screen Color Depth | 24 bits |
| Screen Size | 3.2 inches |
| Display Technology | LCD transmissive |
| Device Size | 111 x 51.7 x 14.5 mm |
| Volume | 78 cc |
| Weight | 113 g |
| Display Touch Technology | Resistive Single-Touch |
| Input Method | Touch Screen |
| Other Keys | Applications Key
Call Creation Key Call Termination Key Camera Key Lock Switch Volume Keys |
| Frequency Bands | GSM 1800
GSM 1900 GSM 850 GSM 900 WCDMA Band IV (1700/2100) WCDMA Band V (850) |
| Data Bearers | CSD
Dual Transfer Mode (MSC 11) EDGE Class B GPRS HSCSD HSDPA WCDMA |
| Regional Availability | UNITED STATES |
| CPU Count | Single CPU |
| CPU Type | ARM 11 |
| CPU Clock Rate | 434 MHz |
| Consumer Link | Device Home Page |
| Developer Page Link | Developer Home Page |
| Extra Features | |
| Extra Features | Accelerometer Sensor
Flight Mode FOTA Firmware over the Air Nokia Podcasting Nokia Store Ovi Maps 3.0 Ovi Share PictBridge Proximity Sensor Software Updates Themes |
| Positioning | A-GPS |
| APIs | |
| Java Runtime | Java Runtime 1.4 for S60 |
| Java Technology | JSR 139 Connected, Limited Device Configuration (CLDC) 1.1
JSR 118 MIDP 2.1 JSR 248 Mobile Service Architecture Subset for CLDC JSR 75 FileConnection and PIM API 1.0 JSR 82 Java™ APIs for Bluetooth 1.1 JSR 172 J2ME™ Web Services Specification 1.0 (RPC package) JSR 172 J2ME™ Web Services Specification 1.0 (XML Parser package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-CRYPTO package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-PKI package) JSR 179 Location API for J2ME™ 1.0 JSR 184 Mobile 3D Graphics API for J2ME™ 1.1 JSR 205 Wireless Messaging API 2.0 JSR 226 Scalable 2D Vector Graphics API for J2ME™ 1.1 JSR 234 Advanced Multimedia Supplements 1.1 (audio3d) JSR 234 Advanced Multimedia Supplements 1.1 (music) JSR 256 Mobile Sensor API IAP Info API 1.0 eSWT UI API 1.0.3 Nokia UI API 1.2 JSR 135 Mobile Media API 1.2 |
| Java API Access Permissions | Java API Access Permissions |
| Other APIs | Open C APIs
Open C++ APIs |
| Product ID | 0x2002376B |
| Sensor API Channels | Accelerometer Double Tap
Accelerometer XYZ Ambient Light Orientation Proximity Monitor Rotation |
| Certificates | Symbian A, Symbian B, Symbian C, Symbian D, UTI Root |
| Browser, Flash and Web Technologies | |
| UAProfile Link | Profile 1 |
| Example User Agent Header | Mozilla/5.0 (SymbianOS/9.4; U; Series60/5.0 Nokia5230-c/10.0.055; Profile/MIDP-2.1 Configuration/CLDC-1.1 ) AppleWebKit/413 (KHTML, like Gecko) Safari/413 |
| Browser Details | HTML over TCP/IP
OSS Browser WAP 2.0 XHTML over TCP/IP |
| Flash Technology | Flash Lite 3.0 |
| Flash Lite Features | Flash Video |
| Web Runtime | Web Runtime 1.1 |
| Multimedia | |
| Camera Resolution | 1600 x 1200 pixels |
| CMOS Sensor | 2.0 Megapixels |
| Camera Digital Zoom | 3 x |
| Camera Focal length | 3.7 mm |
| Camera F-Stop/Aperture | f/2.4 |
| Camera Focus range | 60 cm to infinity |
| Camera Image Formats | JPEG/Exif |
| Camera Features | Auto Exposure, Exposure Compensation, Full Screen Viewfinder, Self Timer, Sequence Mode, Still Image Editor |
| Video Recording Resolution | 640 x 480 pixels |
| Video Recording Frame Rate | 30 fps |
| Video Digital Zoom | 4 x |
| Video Recording Formats | 3GPP, MPEG-4 |
| Video Features | Video Editor
Video Player Video Recorder Video Ringtones Video Sharing Video Stabilization Video Streaming |
| Video Playback Formats | 3GPP formats (H.263), Flash Video, H.264/AVC, MPEG-4, RealVideo 7,8, WMV 9 |
| Video Playback Frame Rate | 30 fps |
| Graphic Formats | BMP, EXIF, GIF87a, GIF89a, JPEG, JPEG 2000, MBM, OTA, PNG, TIFF, WBMP, WMF |
| Audio Features | Audio Equalizer
Audio Recording AAC Audio Streaming Bass Boost Bluetooth Stereo Handsfree Speaker Loudness Music Player Stereo FM Radio Stereo Widening |
| Audio Formats | AAC, AAC+, AMR-NB, AMR-WB, AU, AWB, HE-AAC v2, M4A, MIDI Tones (poly 64), Mobile XMF, MP3, MP4, RealAudio 7, 8, RMF, SND, SP-MIDI, True tones, WAV, WMA, WVE |
| Memory Functions | |
| Maximum User Storage | 45 MB |
| ROM Memory | 256 MB |
| RAM Memory | 128 MB |
| Memory Card type | Micro SD |
| Memory Card Features | Hot Swap |
| Maximum Memory Card Size | 16 GB |
| Maximum Heap Size | Unlimited |
| Maximum JAR Size | Unlimited |
| Connectivity | |
| Local Connectivity | Bluetooth 2.0 +EDR
Bluetooth Stereo Audio Micro USB MTP (Multimedia Transfer Protocol) Nokia AV 3.5mm USB 2.0 High-Speed USB Mass Storage |
| Bluetooth Profiles | A2DP, AVRCP 1.0, BIP, DIP, DUN, FTP, GAVDP, HFP, HID, HSP, OPP, PBAP 1.0, SAP |
| Messaging | |
| Messaging | IM, MMS+SMIL, SMS |
| Messaging Features | OMA Multimedia Messaging Service v1.3 |
| Email Solutions | Mail for Exchange
OMA E-mail Notification v1.0 |
| Supported Email Protocols | IMAP4, POP3, SMTP |
| Supported Document Formats | Excel, PDF, Powerpoint, Word, Zip |
| Power Management | |
| Power Management | 2.0mm Charger Connector |
| Battery model | BL-5J 3.7V 1320mAh |
| GSM Talk Time up to | 7.0 hours |
| WCDMA Talk Time up to | 4.3 hours |
| GSM Standby Time up to | 438.0 hours |
| WCDMA Standby Time up to | 458.0 hours |
| Video Playback Time up to | 4.6 hours |
| Music Playback Time up to | 33.0 hours |
| Other | |
| OMA Device Management | OMA Client Provisioning v1.1
OMA Device Management v1.1.2 |
| Synchronization | OMA Data Synchronization v1.2
SyncML |
| Digital Rights Management | OMA DRM Forward Lock
OMA DRM v1.0 OMA DRM v2.0 OMA DRM v2.1 Windows Media DRM 10 |
| DRM Delivery Method | HTTP Download
MMS OMA Download v1.0 |
