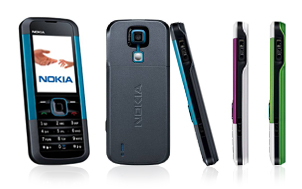

Nokia 5000
Announced 2 April 2008
Phone Type Brick
Operating System S40 5th Edition, FP1 Lite
Communication GSM 900/1800, EDGE

GSM 850/1900, EDGE

Bluetooth

The Nokia 5000 is a Dual-band GSM phone EGSM 900/1800 or GSM 850/1900 (for some markets) that includes a 1.3 Mega Pixel camera, FM radio, Bluetooth, E-mail and mobile Internet access via a WAP browser. Additionally, the Nokia 5000 supports MMS and Nokia Xpress Audio Messaging, for recording and editing messages on the go.

Technical Specs
Developer Platform Series 40 5th Edition, Feature Pack 1 Lite
Operating System Nokia OS
Screen Resolution 240 x 320 pixels
General
Development Frameworks Java
Screen Resolution 240 x 320 pixels
Screen Color Depth 16 bits
Device Size 106 x 46 x 11 mm
Weight 74 g
Keypad Grid Key Mat
Other Keys 3 Labeled Soft Keys

4-way Scrolling

Frequency Bands GSM 1800

GSM 1900

GSM 850

GSM 900

Data Bearers EGPRS

GPRS

Regional Availability Africa, Asia-Pacific, CHINA, Europe, Middle East
Consumer Link Device Home Page
Developer Page Link Developer Home Page
Extra Features
Extra Features Handsfree Speaker

MP3 Ringtones

OMA Browsing v2.1

Stereo FM Radio

SyncML

APIs
Java Technology JSR 139 Connected, Limited Device Configuration (CLDC) 1.1

JSR 118 MIDP 2.1

JSR 185 Java™ Technology for Wireless Industry

JSR 75 FileConnection and PIM API 1.0

JSR 82 Java™ APIs for Bluetooth 1.1

JSR 135 Mobile Media API 1.1

JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-APDU package)

JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-CRYPTO package)

JSR 205 Wireless Messaging API 2.0

Nokia UI API 1.1

Recommended Java SDK Series 40 5th Ed. FP1 SDK
Java API Access Permissions Java API Access Permissions
Certificates UTI Root
Browser, Flash and Web Technologies
UAProfile Link Profile
Browser Details Opera Mini

WAP 2.0

XHTML over TCP/IP

Multimedia
Camera Resolution 1024 x 1280 pixels
Camera Digital Zoom 4 x
Camera Image Formats JPEG
Video Recording Resolution 128 x 96 pixels
Video Recording Frame Rate 6 fps
Video Recording Formats H.263
Video Features Video Player
Video Playback Formats 3GPP formats (H.263), MPEG-4
Graphic Formats BMP, GIF87a, GIF89a, JPEG, PNG, WBMP
Theme Version Series 40 Theme v3.0 Light
Suggested Theme Template Series 40 Blue Text
Audio Features Audio Recorder AMR

Music Player

Audio Formats AAC, AMR-NB, MIDI Tones (poly 24), MP3, SP-MIDI
Memory Functions
Maximum User Storage 12 MB
Maximum Heap Size 1 MB
Maximum JAR Size 512 KB
Connectivity
Local Connectivity Bluetooth

Nokia AV 2.5mm

Bluetooth Profiles BIP, DUN, FTP, GAP, GAVDP, GOEP, HFP, HSP, OPP, SAP, SDAP
Messaging
Messaging IM, MMS+SMIL, SMS
Messaging Features OMA Instant Messaging and Presence Service v1.1

OMA Multimedia Messaging Service v1.2

Supported Email Protocols IMAP4, POP3, SMTP
Power Management
Power Management 2.0mm Charger Connector
Battery model BL-4B 3.7V 700mAh
Talk Time up to 4.75 hours
Standby Time up to 336.0 hours
Other
OMA Device Management OMA Client Provisioning v1.1

OMA Device Management v1.2

Synchronization OMA Data Synchronization v1.1.2
Digital Rights Management OMA DRM Forward Lock

OMA DRM v1.0

OMA DRM v2.0

DRM Delivery Method MMS

OMA Download v1.0

WAP Download
