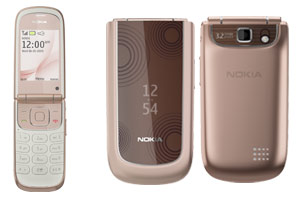

| Nokia 3710 fold | |
|---|---|
| |
| Announced | 15 June 2009 |
| Phone Type | Fold |
| Operating System | S40 6th Edition |
| Communication | GSM Quad-Band, EDGE
WCDMA 900/1700/2100, UMTS WCDMA 850/1900/2100, UMTS Bluetooth 2.1 +EDR |
The Nokia 3710 fold is a phone supporting EGSM 850/900/1800/1900 and WCDMA 900, 1700/2100 (or WCDMA 850, 1900, 2100 for some regions). Main features include Series 40 6th Edition developer platform, WebKit Open Source Browser, A-GPS and Nokia Maps, 3.2 megapixel Full Focus camera with flash, stereo FM Radio, Flash Lite 3.0, Bluetooth 2.1 +EDR and MIDP Java 2.1 with additional Java APIs.
| Technical Specs | |
|---|---|
| Developer Platform | Series 40 6th Edition (initial release) |
| Operating System | Nokia OS |
| Screen Resolution | 240 x 320 pixels |
| General | |
| Development Frameworks | Java
Flash Series 40 Web Apps |
| Screen Resolution | 240 x 320 pixels |
| Screen Color Depth | 24 bits |
| Screen Size | 2.2 inches |
| Secondary Screen Resolution | 128 x 160 pixels |
| Secondary Screen Color Depth | 1 bits |
| Secondary Screen Size | 1.36 inches |
| Display Technology | LCD transmissive[1] |
| Device Size | 89 x 47 x 15.2 mm |
| Volume | 54 cc |
| Weight | 94 g |
| Keypad | Grid Key Mat |
| Other Keys | 2 Labeled Soft Keys
5-way Scrolling Volume Keys |
| Frequency Bands | GSM 1800
GSM 1900 GSM 850 GSM 900 WCDMA Band I (2100) WCDMA Band II (1900) WCDMA Band IV (1700/2100) WCDMA Band V (850) WCDMA Band VIII (900) |
| Data Bearers | Dual Transfer Mode
EGPRS GPRS WCDMA |
| Regional Availability | BRAZIL, Eurasia, Latin America, North America, SEAP, SPAIN, TAIWAN |
| Consumer Link | Device Home Page |
| Developer Page Link | Developer Home Page |
| Notes | 1 Secondary display: transflective LCD. |
| Extra Features | |
| Extra Features | Flight Mode
FOTA Firmware over the Air Nokia Maps 2.0 Nokia Store Ovi Share Themes |
| Positioning | A-GPS
GPS |
| APIs | |
| Java Technology | JSR 139 Connected, Limited Device Configuration (CLDC) 1.1
JSR 118 MIDP 2.1 JSR 248 Mobile Service Architecture Subset for CLDC JSR 75 FileConnection and PIM API 1.0 JSR 82 Java™ APIs for Bluetooth 1.1 JSR 135 Mobile Media API 1.1 JSR 172 J2ME™ Web Services Specification 1.0 (RPC package) JSR 172 J2ME™ Web Services Specification 1.0 (XML Parser package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-APDU package) JSR 177 Security and Trust Services API for J2ME™ 1.0 (SATSA-CRYPTO package) JSR 179 Location API for J2ME™ 1.0 JSR 184 Mobile 3D Graphics API for J2ME™ 1.1 JSR 205 Wireless Messaging API 2.0 JSR 211 Content Handler API 1.0 JSR 226 Scalable 2D Vector Graphics API JSR 234 Advanced Multimedia Supplements 1.1 (audio3d) JSR 234 Advanced Multimedia Supplements 1.1 (camera)[1] JSR 234 Advanced Multimedia Supplements 1.1 (music) Nokia UI API 1.1 |
| Recommended Java SDK | Nokia SDK 1.0 for Java |
| Java API Access Permissions | Java API Access Permissions |
| Certificates | UTI Root |
| Notes | 1 contains CameraControl, SnapshotControl, FlashControl, FocusControl and ZoomControl |
| Browser, Flash and Web Technologies | |
| Browser Details | HTML over TCP/IP
WAP 2.0 WebKit Open Source Browser XHTML over TCP/IP |
| Flash Technology | Flash Lite 3.0 |
| Flash Lite Features | Screensaver
Wall Paper |
| Multimedia | |
| Camera Resolution | 1200 x 1600 pixels |
| CMOS Sensor | 3.2 Megapixels |
| Camera Digital Zoom | 4 x |
| Camera Image Formats | JPEG |
| Camera Features | Flash, Full Focus, Full Screen Viewfinder, Self Timer, Still Image Editor |
| Video Recording Resolution | 144 x 176 pixels |
| Video Recording Frame Rate | 15 fps |
| Video Digital Zoom | 5 x |
| Video Recording Formats | H.263, MPEG-4 |
| Video Features | Video Call
Video Player Video Recorder Video Ringtones Video Sharing Video Streaming |
| Video Playback Formats | 3GPP formats (H.263), H.264/AVC, MPEG-4, WMV 9 |
| Graphic Formats | BMP, GIF87a, GIF89a, JPEG, M3G, PNG, SVG, WBMP |
| Theme Version | Series 40 Theme v3.0 |
| Suggested Theme Template | Series 40 Simple UI |
| Audio Features | Audio Recorder AMR
Audio Streaming Bluetooth Stereo FM Radio Handsfree Speaker MP3 Ringtones Music Player |
| Audio Formats | AAC, AAC+, AMR-NB, AMR-WB, HE-AAC v2, M4A, MIDI Tones (poly 64), MP3, MP4, SP-MIDI, True tones, WAV, WMA |
| Secondary Camera Digital Zoom | 4 x |
| Memory Functions | |
| Maximum User Storage | 70 MB |
| ROM Memory | 128 MB |
| RAM Memory | 64 MB |
| Memory Card type | Micro SD |
| Memory Card Features | Hot Swap |
| Maximum Memory Card Size | 8 GB |
| Maximum Heap Size | 2 MB |
| Maximum JAR Size | 1 MB |
| Connectivity | |
| Local Connectivity | Bluetooth 2.1 +EDR
Micro USB MTP (Multimedia Transfer Protocol) Nokia AV 2.5mm Nokia microUSB Cable CA-101D USB 2.0 High-Speed |
| Bluetooth Profiles | A2DP, AVRCP 1.0, DUN, FTP, GAP, GAVDP, GOEP, HFP, HSP, OPP, PAN, PBAP 1.0, SAP, SPP 1.0 |
| Messaging | |
| Messaging | IM, MMS+SMIL, SMS |
| Messaging Features | OMA Multimedia Messaging Service v1.3 |
| Email Solutions | Native Email Client
Nokia Messaging 2.0 |
| Supported Email Protocols | IMAP4, POP3, SMTP |
| Power Management | |
| Power Management | 2.0mm Charger Connector
USB Charging |
| Battery model | BL-4S 3.7V 860mAh |
| GSM Talk Time up to | 4.0 hours |
| WCDMA Talk Time up to | 3.3 hours |
| GSM Standby Time up to | 300.0 hours |
| WCDMA Standby Time up to | 300.0 hours |
| Video Call Time up to | 1.0 hours |
| Music Playback Time up to | 24.0 hours |
| Other | |
| OMA Device Management | OMA Client Provisioning v1.1
OMA Device Management v1.2 |
| Synchronization | OMA Data Synchronization v1.1.2
SyncML |
| Digital Rights Management | OMA DRM Forward Lock
OMA DRM v1.0 OMA DRM v2.0 Windows Media DRM |
| DRM Delivery Method | HTTP Download
MMS OMA Download v1.0 |
